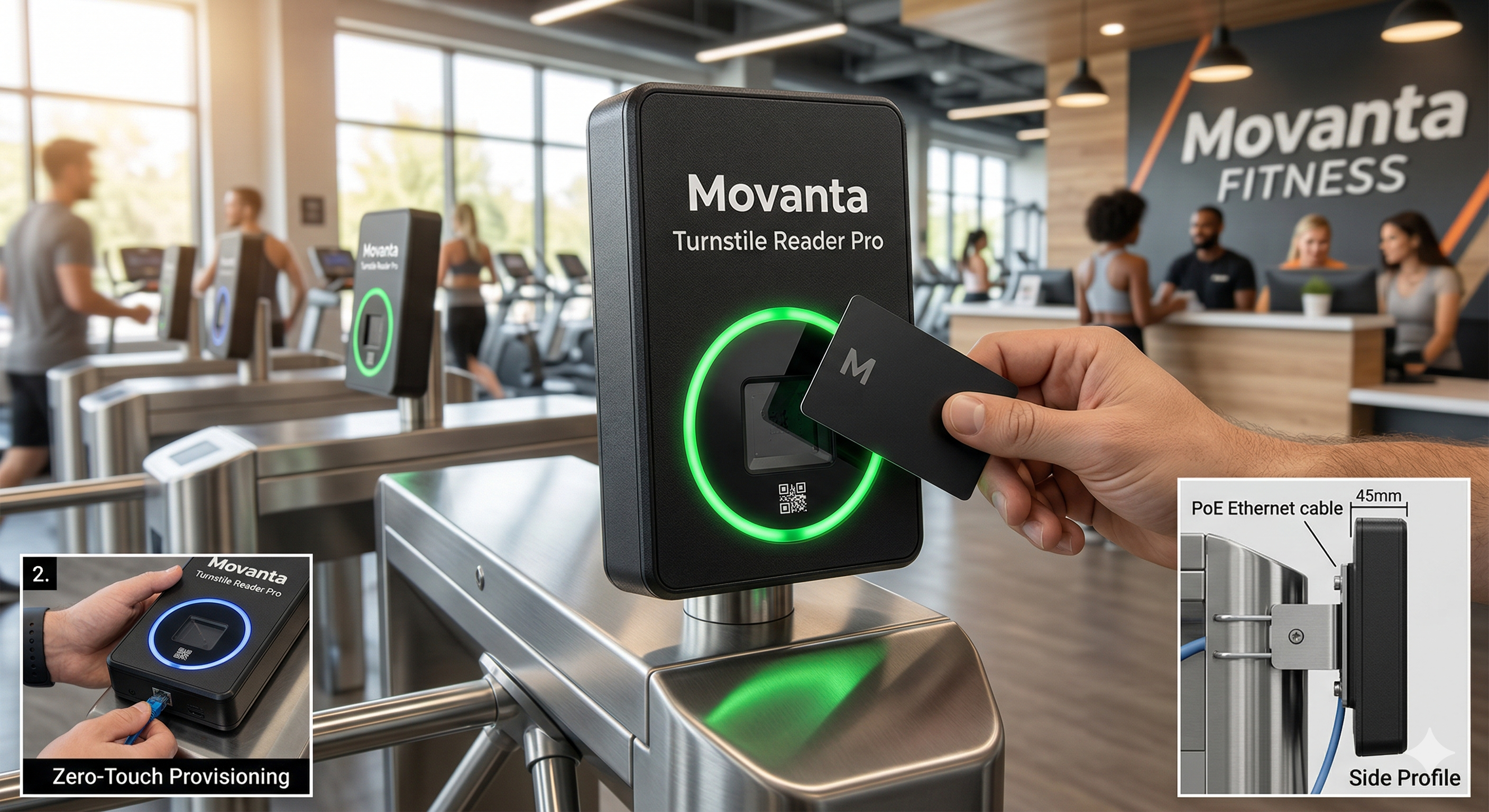

Turnstile Reader Pro
Enterprise-grade NFC and QR access reader designed for high-traffic fitness facilities. Plug in, power on, and start validating.
Sub-200ms Validation
From NFC tap to door unlock in under 200 milliseconds. Edge-cached credentials ensure speed even under heavy load.
End-to-End Encryption
TLS 1.3 encrypted communication between reader and cloud. Credential data never stored on the device.
Always Connected
Primary Ethernet with Wi-Fi 6 failover. Local credential cache ensures access works even during network outages.
Zero-Touch Provisioning
Ships pre-configured to your account. Plug in the Ethernet cable, and it auto-registers and starts working in 60 seconds.
Technical Specifications
NFC StandardsISO 14443A/B, ISO 15693, FeliCa
QR Scanner2D CMOS, 200ms decode speed
ConnectivityEthernet (PoE 802.3af), Wi-Fi 6 backup
PowerPoE (12W max) or 12V DC adapter
Ingress RatingIP65 — dust-tight, water-jet resistant
Operating Temp-20°C to +55°C
Dimensions180 × 120 × 45mm
Weight420g
MountingWall, turnstile, or pole mount (hardware included)
LED IndicatorsRGB status ring — green (granted), red (denied), blue (ready)
API Response< 200ms end-to-end validation
Relay OutputDry contact relay for door/turnstile trigger
